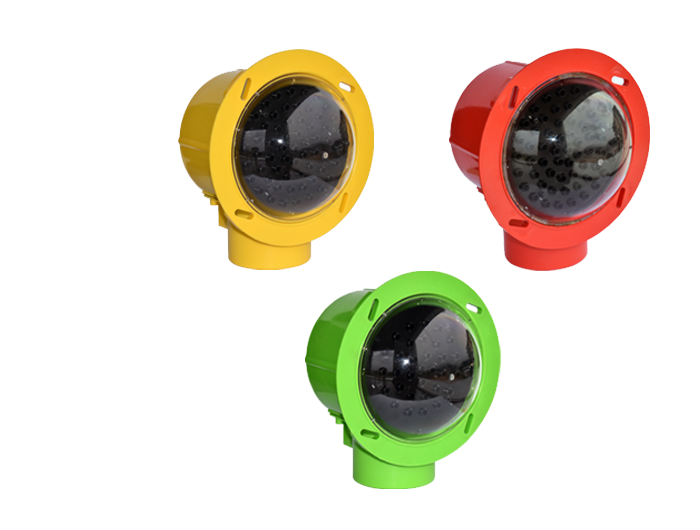

Railway LED Signals are designed for use in Multi Aspect Signaling schemes for Main Line. Signals are available in 110V AC, 125mm Diameter
High efficiency AllnGaP & InGaN LEDs, 40 - 100 viewing Angle with 600 meters visibility.
Constant uniform intensity over wide input voltage range typically 82 to 150 Volts.
Chromaticity as per BS 1376 Standard.
High Strength hermitically sealed units made in ABS material for better immunity.
Color coding of Shells as per Aspect color to prevent incorrect replacement of units.
MIL grade connectors used for interconnection for better reliability.
Signals are available in 110V AC
High efficiency AllnGaP & InGaN LEDs, 40 - 100 viewing Angle with 600 meters visibility.
Constant uniform intensity over wide input voltage range typically 82 to 150 Volts.
Chromaticity as per BS 1376 Standard
High Strength hermitically sealed units made in ABS material for better immunity.
Color coding of Shells as per Aspect color to prevent incorrect replacement of units.
MIL grade connectors used for interconnection for better reliability.

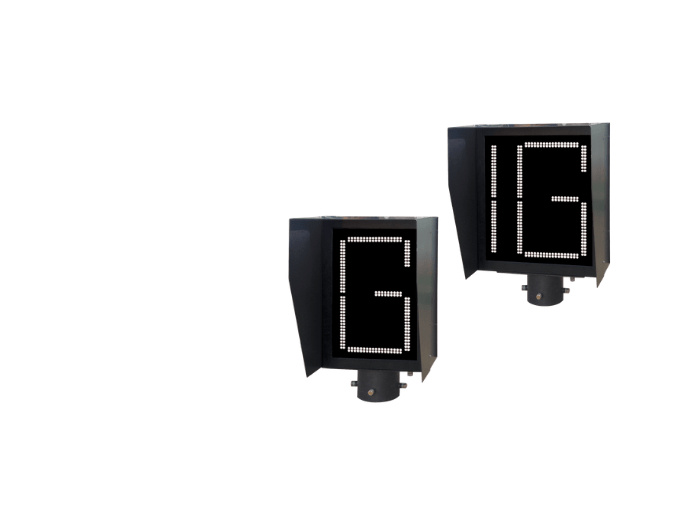

Each Segment is constituted by a randomly interleaved series parallel combination of 36 LEDS.
High Intensity LED’s with UV stabilized epoxy, Junction Temperature greater than 100 degree, and of reputed make are used.
Fusing of an LED will not blank the whole segment or deteriorate the visibility.
The segment power supply driver is redundant in nature, in event of failure of the working supply the stand by supply will come into the circuit automatically.
Components used in MLRI unit are of Industrial grade and appropriately derated for better life.
AC Immunity of 60V.
Total LED Technology and Modular assembly for better maintenance.
Rated Junction temperature of LED’s are greater-than 100 degreeC.
Uniform intensity and color over entire Operating Range and throughout the life time.
Industrial grade components. Fail safe LED current regulator as used in LED main signal.
The circuit has built in inherent safety that it draws the required current whenever the character is lit.
AC Immunity of 60V.

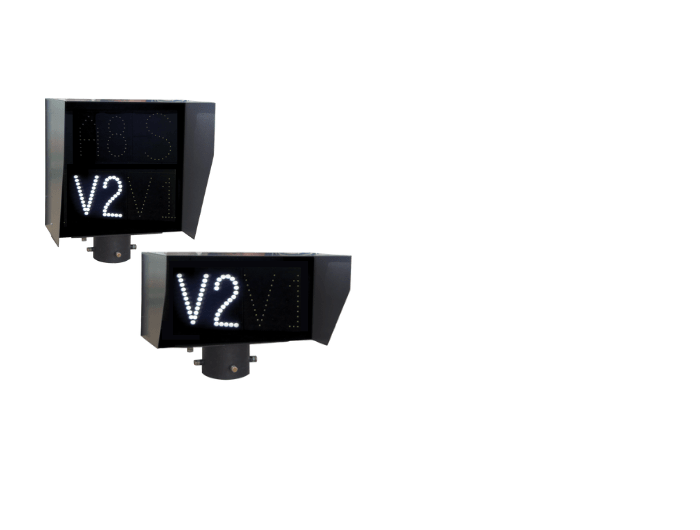

Single hood for multiple displays.
Vertical and Horizontal stacking for two, three and four character indicators.
Customisation can be done based as per requirement.
