Efftronics Data Logger

Micro Processor Based Data Logger

The status of various Railway Signal Control and interlocking relays are essentially to be logged in order to verify, diagnose its operation, maintenance and faults. Data logger logs the change of status of every relay connected to it. Logged data transmitted upon to the central place to generate various exceptions, reports and other information by application software.

Salient Features:

  • Micro-Processor based system
  • Maximum 4096 opto isolated digital inputs @ 16 mSec sampling and 96 individually isolated analog input voltage channels @ 1 Sec.
  • Non-volatile data storage (more than 26 lacks) in NAND Flash and can be retrieved into Memory Card.
  • LCD, LED and Key Board interface for User interaction
  • Printer interface for Hard copy of logged data
  • 8 serial communication ports with high data rates
  • In built dual Modem for network
  • Suitable for different types of Communication media like
    • Main telecom cable
    • Quad Cable
    • Analog Channel of OFC, digital microwave and analog microwave 64KBPS data channel on OFC or digital microwave and E1 Data Channel with 2MBPS
  • Potential free relay contacts to control from central place
  • Audio – Visual alarms on exceptions and faults

Front End Processor:

It buffers Data between server and data logger network and sends data to CMU

  • Multiple serial ports (max 9 ports) to connect network in various points
  • Software filter for Redundant data
  • 10 lacks events storage

Network Management of Data Loggers (NMDL)

  • Front end application software at central control place
  • status of all the data loggers in the network
  • Online status of digital/analog inputs
  • Data selective viewing
  • Online graphical mimic display of every station layout
  • Auto backup on exceeding configured size of data base.

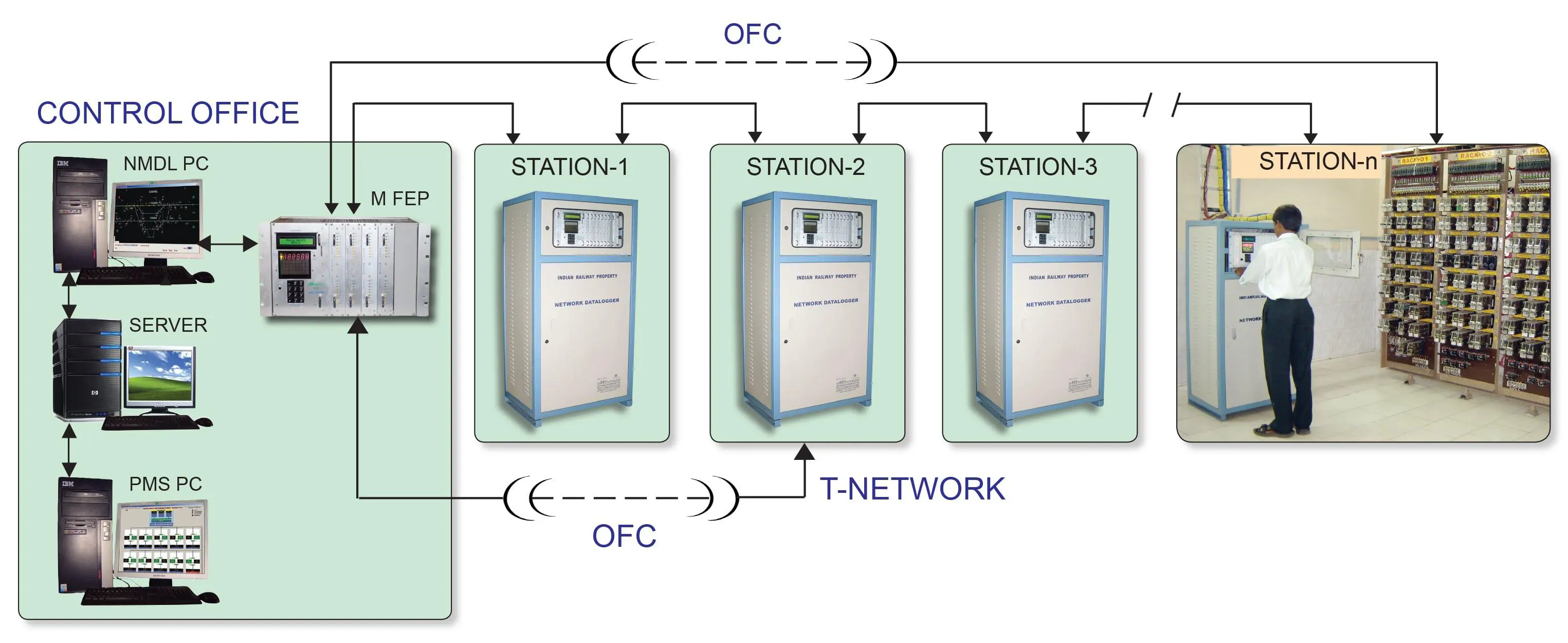

Network Management of Data Logger

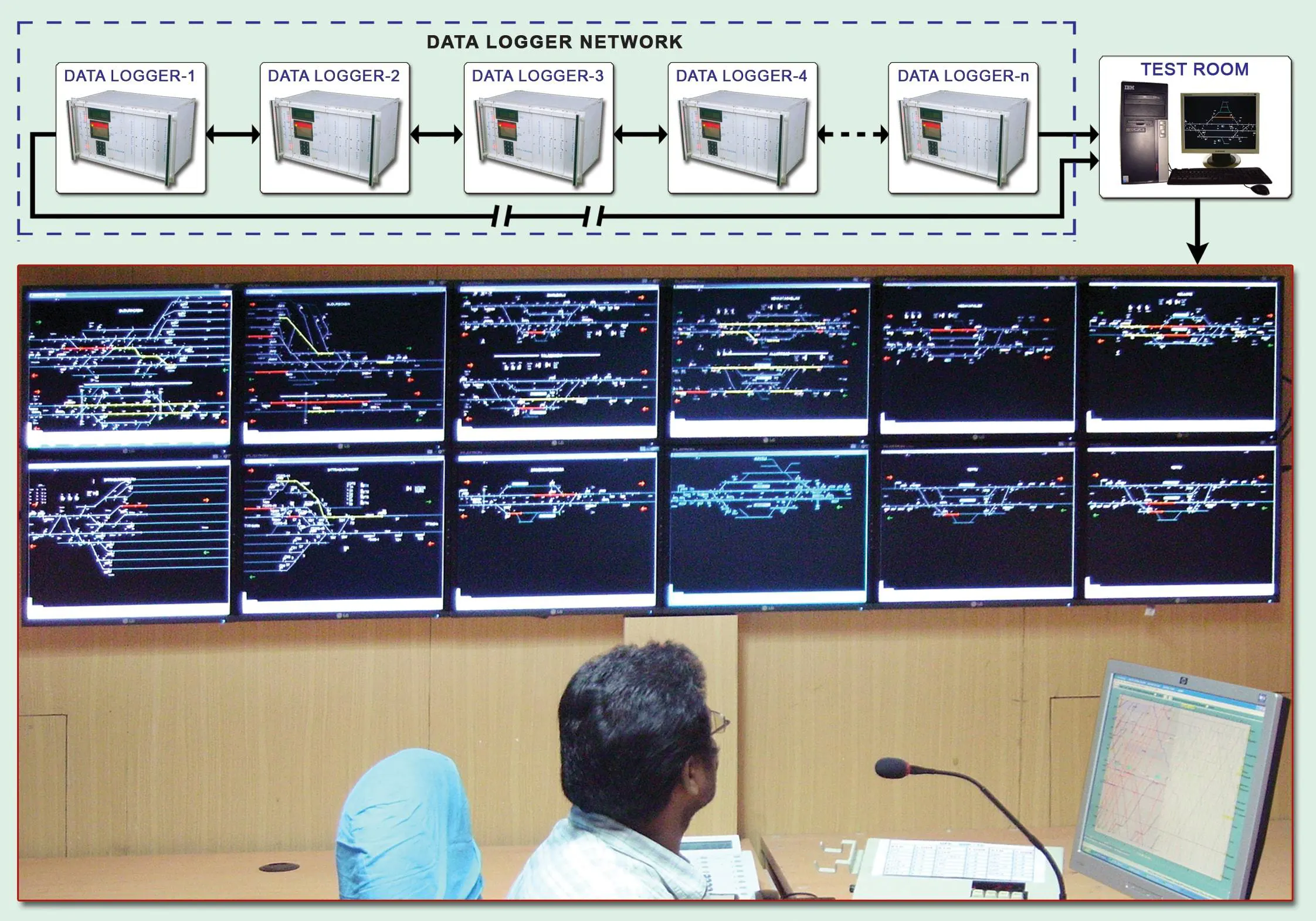

Online Simulation of Signaling Assets

On-Line Station Simulation

  • Supervisory System for easy Maintenance of Data logger Network.
  • On-line Asset-Failure Alarms.
    • Auto SMS of Asset Failure.
    • Auto Mailing Facility of Asset-Failure Reports.
  • On-line/Offline Yard Simulation.
  • Asset Lifetime Alerting.
  • Log of events Report.
  • Power Supply variation as Graphs.
  • Summary Report of Asset Failures.

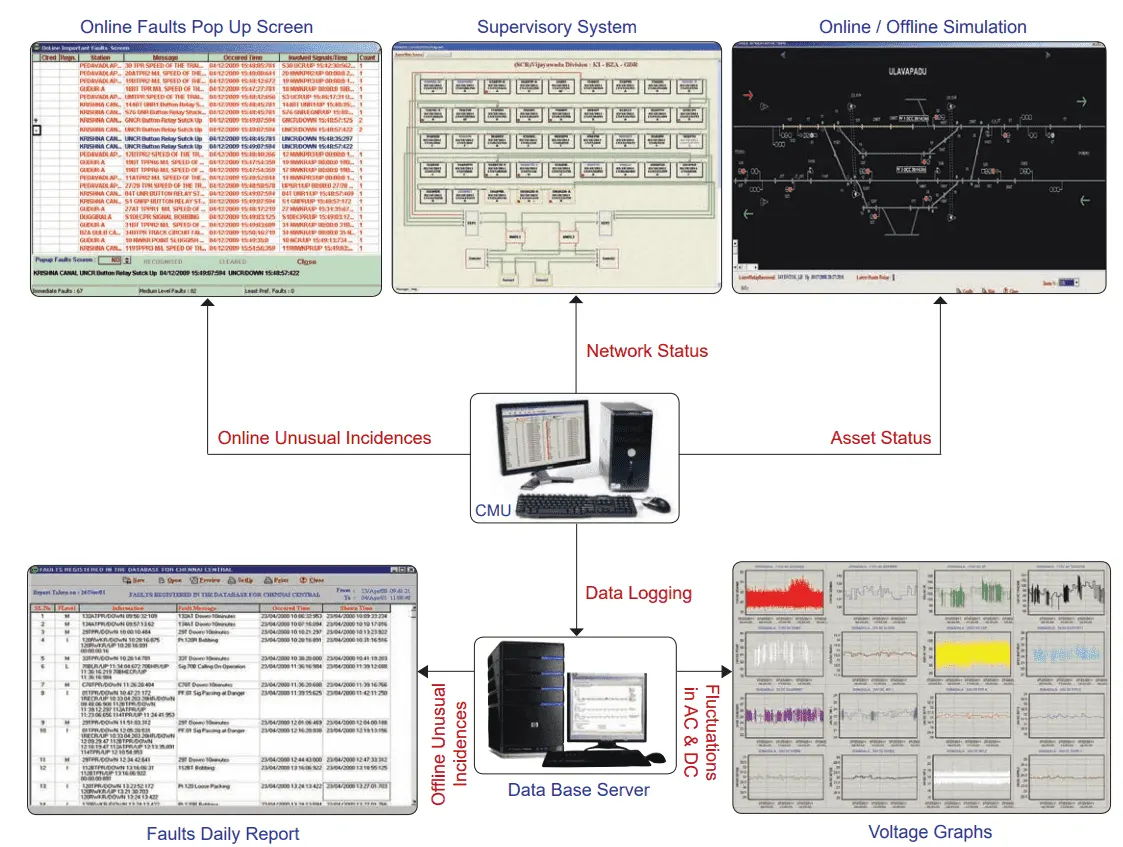

Reports generated from Data Logger

Data Logger Reports

  • Status-orientated maintenance means less maintenance effort and hence savings in human and material resources.
  • Early recognition and clearing of faults reduce the number of delays considerably
  • A long-term evaluation of past measurement data is possible.
  • This data can be useful in other applications like Train Charting, Train Management System, Wrong Operation Information System, Integrated Passenger Information System etc.

Other Domains:

Some other domains where the data logger was implemented are

  • Weather Monitoring System
  • Battery Health Monitoring System
  • Water Distribution System
  • Power SCADA
